Door Cross Sections



Solid wood doors
Our solid wood doors have a veneer thickness of 1/8" thick or more applied to a wood core
with matching wood edges and solid wood panels
interiordoors_Typical stave core construction of solid wood doors
Typical stave core construction of solid wood doors

Solid Wood Doors Cross Sections & Details

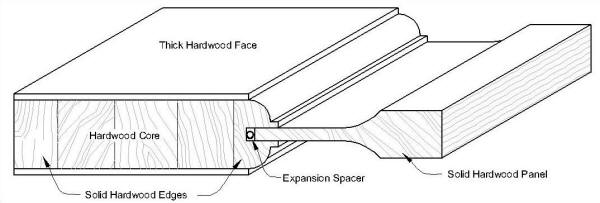

"Our standard raised panel with standard cove sticking"

Interior Doors - Solid Wood Cross Section "Standard" 1-3/8" thick

1-3/8" Solid Wood Door


"Our standard raised panel with standard cove sticking"

1-3/4" Solid Wood Door

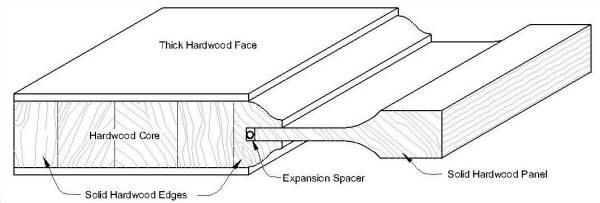

"Standard style raised panel with "A" Style ogee sticking

 interior_doors_cross_section

1-3/8" Solid Wood Door


"B-Style"

Photo temporarily unavailable


1-3/8" Solid Wood Door - B-Style Sticking with "Slant" Raised Panel

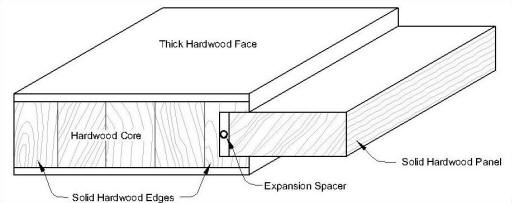

Flat Panel "Mission Style"

        interior_doors_cross_section_square_sticking

1-3/8" Solid Wood Door - Mission Sticking with Flat Panel





W - Series
Solid core veneer doors
Our wood veneer doors have a veneer thickness of 1/16" thick or less applied to a composite core with matching hardwood edges.


W- Series solid core veneer panel and rail sections for 1-3/8" doors
Raised Panel with ogee sticking

W-Series Raised Panel Door Cross-Section

W- Series solid core veneer panel and rail sections for 1-3/8" doors
Flat Panel with ogee sticking


W- Series solid core veneer panel and rail sections for 1-3/8" doors

Flat Panel with square sticking



C - Series
Solid core veneer doors
Our wood veneer doors have a veneer thickness of 1/16" thick or less applied to a composite core with matching hardwood edges.

C- Series solid core veneer panel and rail sections for 1-3/8" doors




interior_doors_C-Series Standard #2346 sticking with 3/4" raised panel

C-Series Standard #2346 sticking with 3/4" raised panel

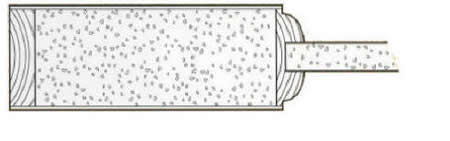

interior_doors_C-Series Standard #8866 sticking with 3/8" flat panel
C-Series Standard #8866 sticking with 3/8" flat panel



interior_doors_C-Series Shaker#8315 sticking with 3/8" flat panel

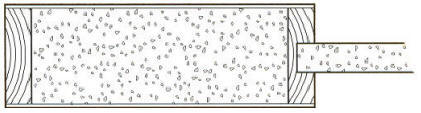

C-Series Shaker  #8315 sticking with 3/8" flat panel

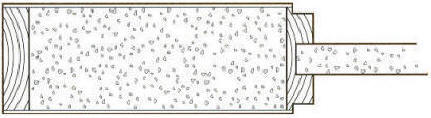

interior_doors_C-Series Mission #8943 sticking with 3/8" flat panel
C-Series Mission #8943 sticking with 3/8" flat panel


interior_doors_C-Series Shaker #8728 sticking  with 5/8" true tongue and groove planks
C-Series Shaker #8728 sticking
with 5/8" true tongue and groove planks


C - Series
Exterior Glass doors

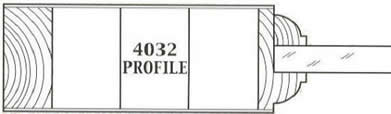

C- Series solid core rail section with 1/2" insulated glass for 1-3/4" doors
interior_doors_C- Series solid core rail section with 1/2" insulated glass for 1-3/4" doors
Also available with #321 Mission sticking

I - Series   Solid wood doors

I-Series solid wood panel and rail sections

Interior_doors_cross_section

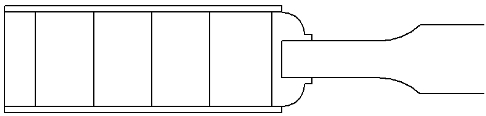

1-1/8" raised panel with 1-3/4" door




interior_doors_cross_section

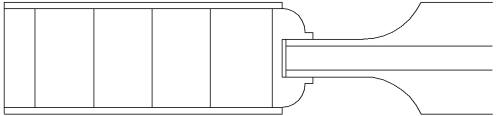

1-3/4" raised panel with 1-3/4" door


interior_doors_cross_section
3/4" raised panel with 1-3/8" door


interior_doors_cross_section
3/4" v-grooved flat panel with 1-3/8" door (knotty pine stock doors only)

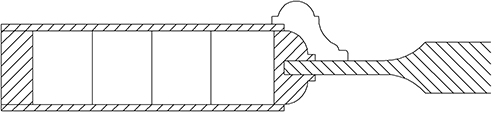

I-Series Cross Section with Applied Molding and Extended Panel Tongue
3/4" raised panel with applied molding 1-3/8" door (extended tongue on panel)

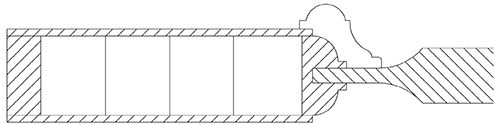

I-Series Cross Section with Applied Molding
3/4" raised panel with applied molding 1-3/8" door

Appalachian-Series
Solid core veneer doors
Our Appalachian Series wood veneer doors have a hardwood veneer thickness of 1/16" thick or less applied to a composite core with matching hardwood edges.

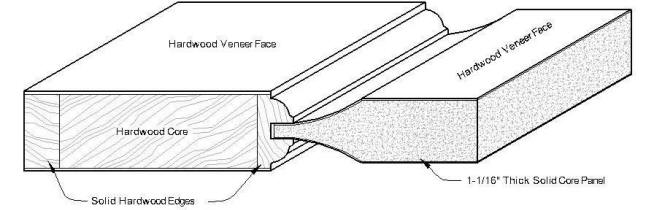

                                           1-3/8" Appalachian Door Profile - Raised Panel with Ovolo Sticking


interior_doors_cross_section_AppalachianRaisedPanel


K - Series Step Band Panel

interior_doors_Cross_Section_K-Series-Step-Band-Panel



TP-Series #002, 1-3/4" knotty alder door with full 1-3/4" raised panels

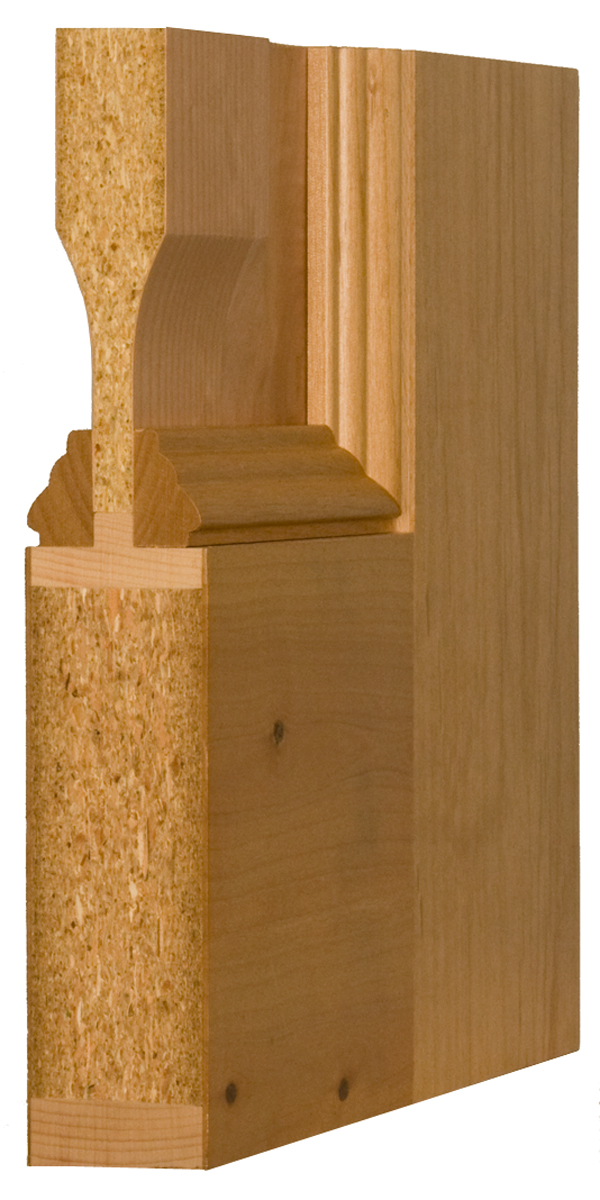

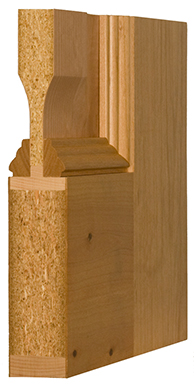

C-Series Bolection Molding Profile
C-Series "Bolection" Molding Profile
